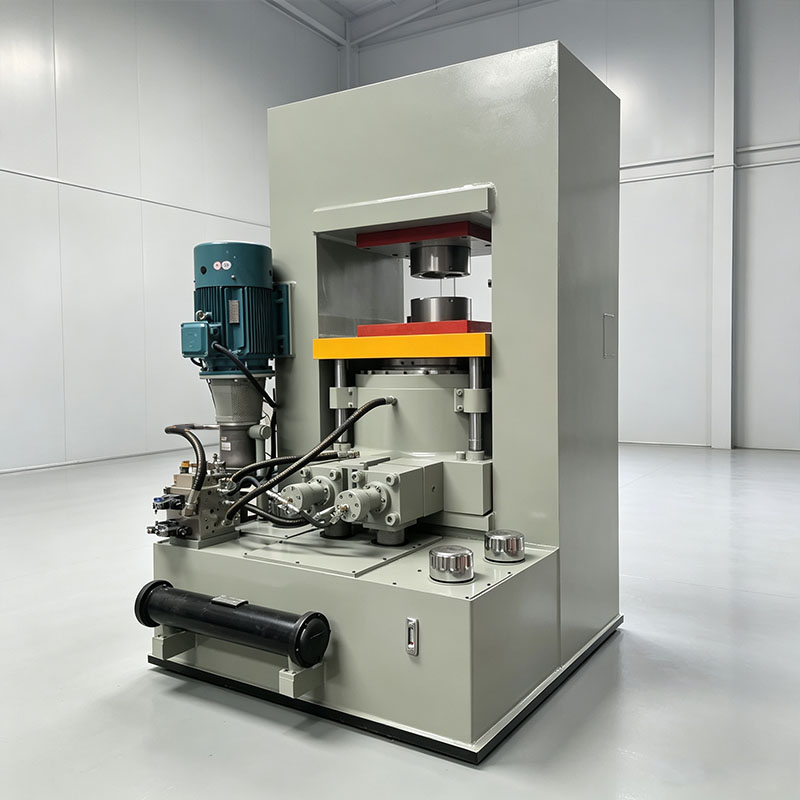

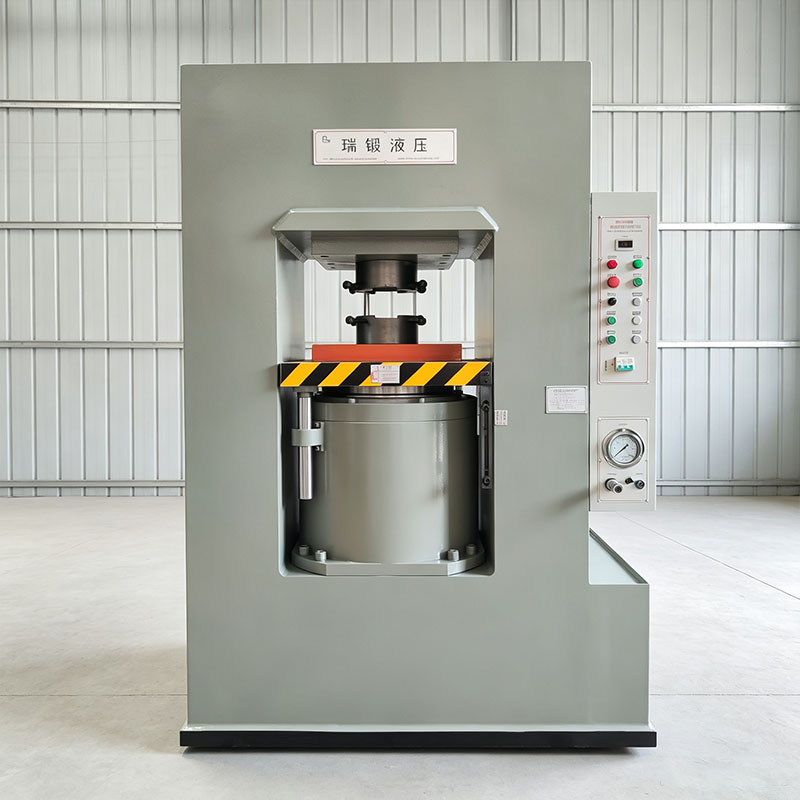

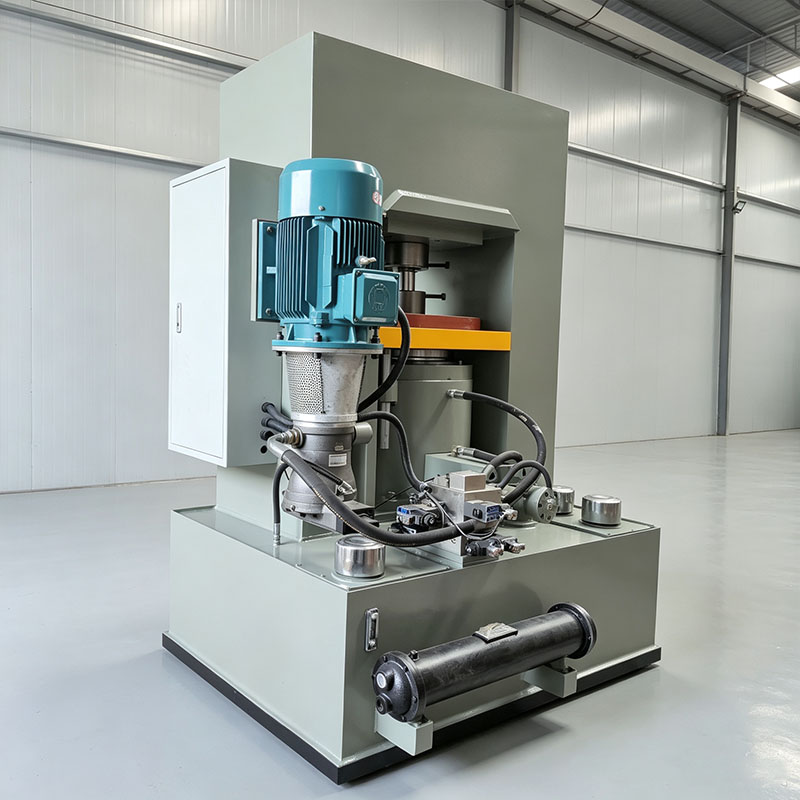

YRD‑A Series Frame Hydraulic PressReturn

This machine is suitable for forming products in industries including hardware, heating tubes, gold ornaments, eyewear, grinding wheels, electrical appliances, embossing, metal nameplates, watch bands (cases and backs), plastics and rubber.

We can also manufacture pressure‑holding type hydraulic presses and hydraulic presses with material‑returning devices according to customer requirements.

They are applied in industries such as grinding wheels, watch cases, metal nameplates, plastics and rubber for heating, shaping and automatic demoulding of processed products.

Fully‑automatic vulcanizing machines equipped with primary‑to‑secondary venting devices are also available.

Technical specifications: The electrical control adopts a micro‑computer single‑chip microcomputer. This system features a safe 24 V control voltage.

It contains no intermediate relays and operates contact‑free. The all‑computer‑chip system delivers high stability, long service life and simple operation.

Product Details

**Technical Parameters**
Model: YRD‑A Series
Item	Unit	YRD‑100A	YRD‑200A	YRD‑300A	YRD‑500A	YRD‑1000A	YRD‑1500A	YRD‑2000A	YRD‑2500A
Main Cylinder Nominal Force	kN	1000	2000	3000	5000	10000	15000	20000	25000
Max. Hydraulic Pressure of Main Cylinder	MPa	25	20	24	25	25	38	40	40
Main Cylinder Return Nominal Force	kN	30	45	50	70	100	100	200	220
Max. Stroke of Moving Beam	mm	200	200	160	160	150	150	220	250
Moving Worktable	Max. mm	380	420	400	420	500	550	740	750
Moving Worktable	Min. mm	180	220	240	260	350	400	490	500
Worktable Moving Speed	Up‑stroke mm/s	85	100	90	145	100	135	115	90
	Pressing mm/s	6	7	5.5	4.5	2	0.17/3.4	0.18/3.6	0.12/3
	Down‑stroke mm/s	70	100	95	145	85	115	80	70
Motor Power	KW	5.5	7.5	7.5	11	22	Main 30 / Aux. 2.2	Main 37 / Aux. 2.2	Main 37 / Aux. 3
Effective Worktable Size	Left‑Right mm	426	536	596	696	860	950	1080	1200
Effective Worktable Size	Front‑Back mm	420	520	580	700	900	950	1080	1200
Overall Dimension	Left‑Right mm	1010	1200	1260	1540	1450	1970	2100	2536
	Front‑Back mm	1060	1050	1190	1260	1590	1900	2125	2280
	Height mm	1310	2013	1925	2045	2560	3210	3890	4120
Machine Weight	t	2	2.8	3.5	5.5	13	22	28	39

Processing Samples
